弧形輥安裝

 正確的安裝方法可使弧形輥達到最佳的展平效果，

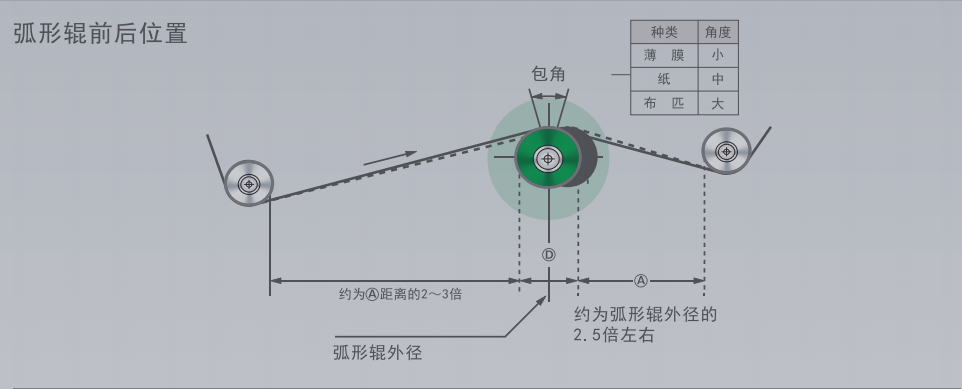

基材通過弧形輥的弧面，通常要有較長的導入距離 B和較短的導出距離

A ，距離 B 通常是距離 A 的2-3 倍左右，尺寸A要接近2.5倍弧形輥的直徑D。

提示：安裝弧形輥時，請確保彎輥和基材是對齊和垂直水平的。

Installation

Optimum effect will be achieved by mounting the

spreader roll .

Long entry distance B short output distance A The material web should always pass over the concave side of the Bowed Roller Dimension”B” should always be 2-3 times the exit span “A”. Dimension “A” should be approximately two and a half times of the Bowed Roller.

Note: When install the Bowed Roller please ensure that it is aligned both vertically and horizontally onto the material web As shown in diagram
